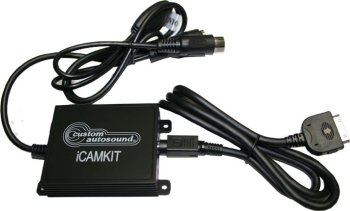

iPod® interface
for Custom Autosound CD controller radios (USA-5, USA-630, USA-66 and Secretaudio
manufactured after 4 / 03 - units designed for 10 CD changer). Connects
to: 8-PIN DIN at Head unit.
-
Compatible with iPod with bottom
dock connector, iPod mini, iPod nano, iPod photo, and iPod video.
-
Power on auto play function
/ power off automatic pause
-
Auto pause when switching to
FM, AM, CD, or Tape.
-
No battery required
-
Keeps your iPod charged at all
times
-
Direct connection with CD-quality
sound
-
1/8" stereo plug for other auxiliary
input
-
Use head unit to change songs
/ fast forward and rewind
-
Supports up to 9 play lists
in "play list mode"
|
| Simply plug
the iCAMKIT into the CD changer port on the back of your Custom Autosound
radio and plug in your iPod. The unit will turn on, turn off and charge
your iPod. Song selection is made with the CD control buttons on your Custom
Autosound radio and includes playlist selection and random song selection.
The iCAMKIT can be used with or without the Custom Autosound 10 CD changer.
If your iPod is not connected the iCAMKIT can still be used to input audio
from an external device (satellite radio, portable CD, etc.) via the 1/8”
stereo plug. |
|
Top
No Noise
Filter
|
|
If after installing
a new stereo system you experience unwanted motor whine or engine noise,
check all grounds on radio, amp, antenna etc. If you still have noise,
our filter may help! |
|
Top
Amplified
Electronic AM / FM Antenna
|
|
Designed for
optimum AM/FM reception. Excellent solution for Street rods, Show Cars,
Classics or any vehicle where a conventional antenna is not desirable.
-
Multiple mounting options
-
No Drilling or grounding required
(radio must be grounded properly)
-
Requires 12-volt power
-
104” Power and Antenna Cable
|
|
Top
Voltage
Booster
|
|
Will operate 12 volt negative
ground accessories from 6 or 8 volt negative ground electrical systems.
The maximum output power is a function of input voltage. When used in a
6 volt system, it can continuously supply more than 3-1/2 amps with the
engine off, and about 5 amps with the engine running at a fast idle. Because
of its very efficient design, its current draw is negligible when no load
is applied (10 milliamps).
NOT RECOMMENDED FOR: Power
actuated door locks, trunk release solenoids, air conditioner clutches,
fans, blowers, power windows, or other electromechanical devices. |
|
Top
Power
Inverter
|
|
Will operate 12 volt negative
ground accessories from 6, 8 or 12 volt positive ground electrical
systems. When used in a 6 volt positive ground system, it can continuously
supply more than 2.1 amps with the engine off, and about 2.5 amps with
the engine running at a fast idle. In a 12 volt positive ground system
it can supply 4.0 amps (min) and 4.7 amps (max) continuous duty. The PGPI-HC
uses a common ground so isolation is not necessary, and because of its
efficient design, its current draw is negligible when no load is applied
(10 milliamps).
NOT RECOMMENDED FOR: Power
actuated door locks, trunk release solenoids, air conditioner clutches,
fans, blowers, power windows, or other electromechanical devices |
|
Top
Memory
Maintenance Module
|
|
For use with NGVB-HC and
PGPI-HC. For radios requiring a separate, always "hot" input for memory
or clock functions.
|
|
Top
Auxiliary
Audio Switcher
|
|
The CD10-AUX allows
you to add an auxiliary RCA source to a Custom Autosound radio while
still being able to maintain your Custom Autosound CD-10 Changer.
The CD10-AUX is a current
sensing device that automatically interrupts the CD-10 audio lines going
to the Custom Autosound Models USA-5, USA-6, AND SECRETAUDIO, and
switch in an external RCA signal whenever an audio signal is detected on
its RCA inputs. The audio lines will reconnect to their previous
state 10 seconds after no audio signal is detected by the CD-10AUX on its
RCA inputs.
|
